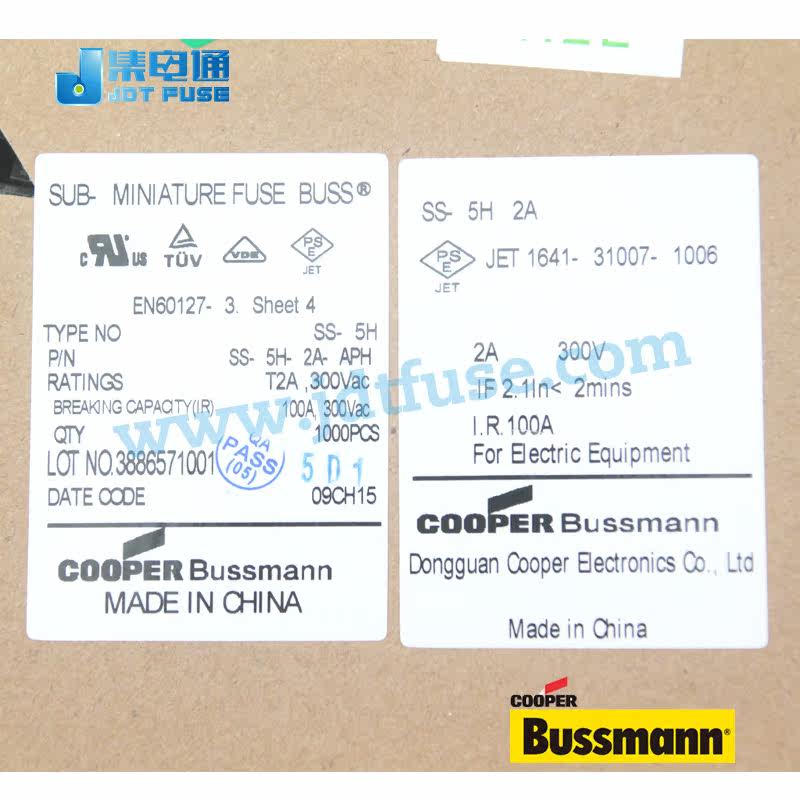

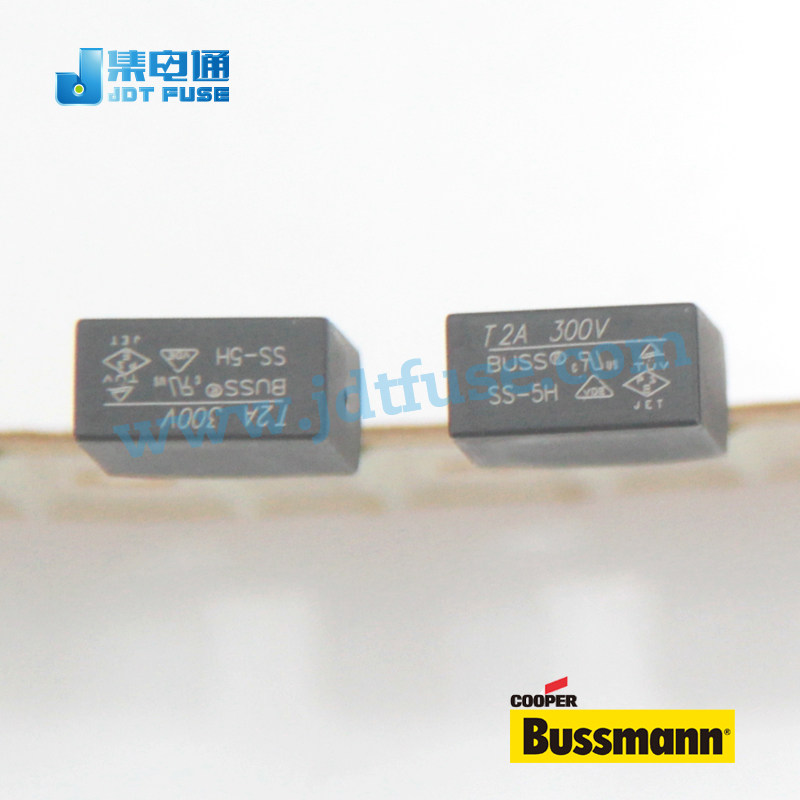

Bussmann方形慢断8*4微型保险丝SS-5H-2A-APH
微型保险丝有别于传统的玻璃管式保险丝和汽车中的片型保险丝等,用于设备内部印制板和IC等的保护、输入输出电路的保护等,特点是体积小、不易破碎、自动化安装等,广泛应用数码相机、笔记本、手机等数码产品中。
Description:
Radial leaded, time delay subminiature fuse with high breaking capacity, designed to IEC 60127-3, Sheet 4. SS-5H series provides protection up to 300Vac with an interrupting rating of 100A.
Electrical Characteristics
Rated
Current
|
1.5 xIn min
|
2.1 xIn max
|
2.75 xIn
|
4 xIn
|
10 xIn
|
min
|
max
|
min
|
max
|
min
|
max
|
1A-6.3A
|
1 hr
|
2 min
|
400 mS
|
10 Sec.
|
150 mS
|
3 Sec.
|
20 mS
|
150 mS
|
Features
• Plastic cap and base, flammability UL 94V0 for additional protection
• Protects against harmful overcurrents in primary and secondary applications

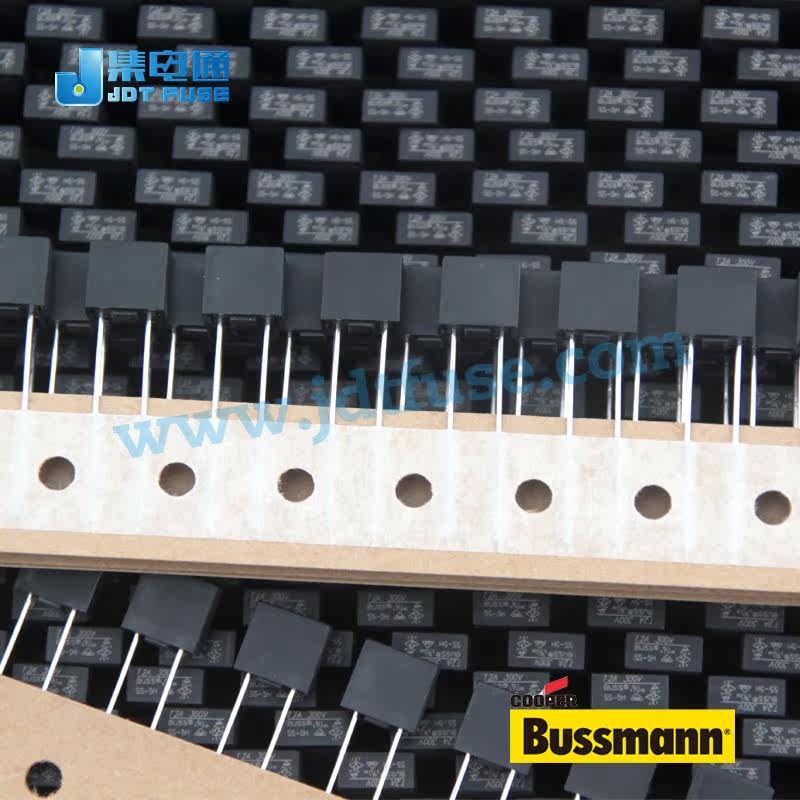

• Small rectangular-leaded design minimizes PCB space
• Solderability to save cost for additional mounting components
• High frequency vibration: MIL-STD-202F, Method 201A
• Halogen-free
• RoHS compliant
• Lead-free
